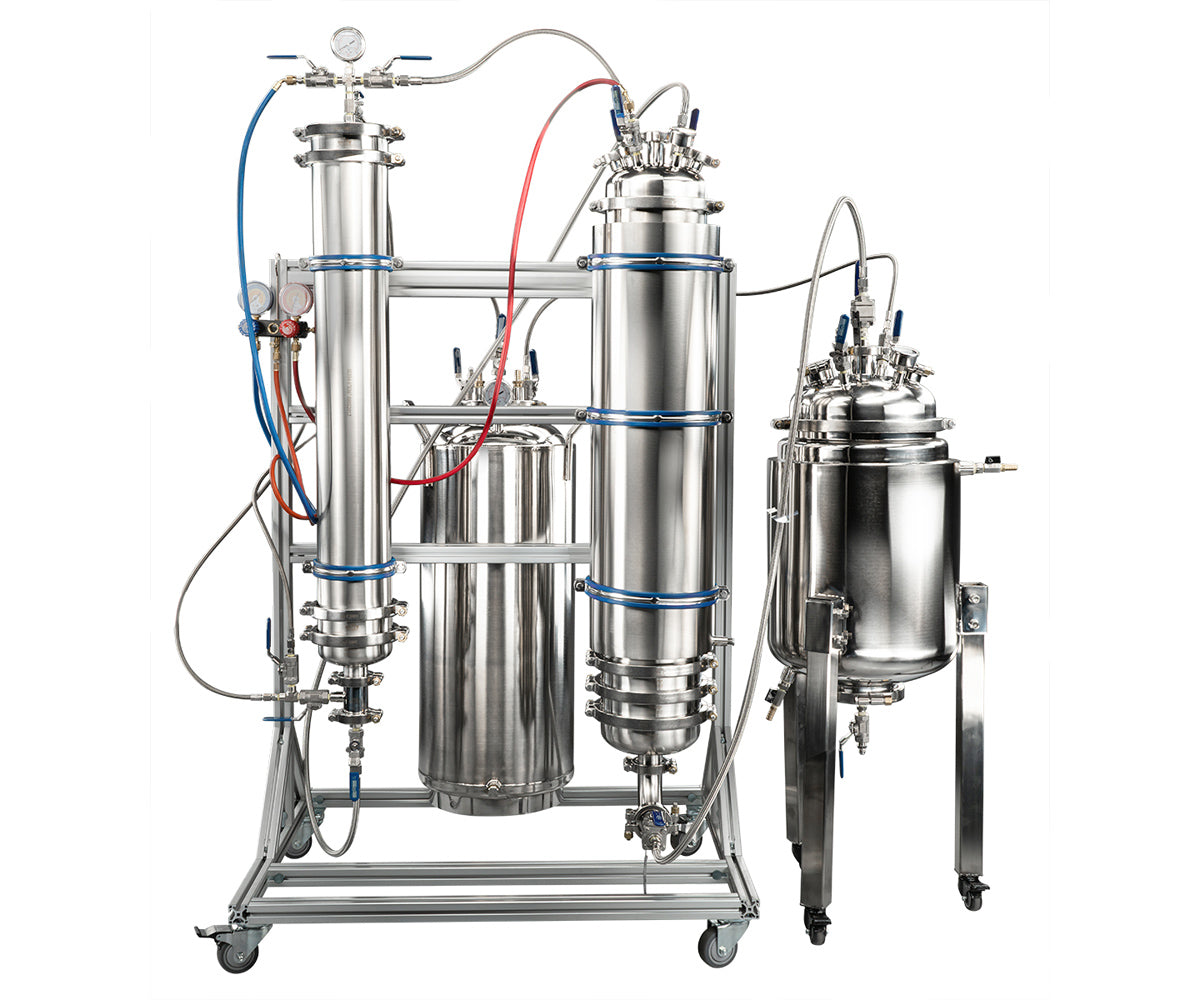

Best Value Vacs 8.5 lb Icarus True Dewax Closed Loop Extractor

8.5 lb Icarus True Dewax Closed Loop Extractor

The Icarus unit shares the same function of the standard Bi-directional extractors. but features rack mounting for ease of use. It is also the 8.5lb True Dewax unit. By utilizing an input manifold for the solvent. the user can switch from bottom flood to a top input on the material column. This method ensures that all material has been saturated and rinsed of oils on the first run. The oil-bearing solvent then dumps into a sleeved spool. where it is chilled with dry ice. Once the solvent has chilled. waxes and lipids will coagulate and fall out of the solution. The solution is then filtered and dumped into a collection base. The rack unit comes standard with a port for nitrogen assistance.

Features:
Up to 8.5lb material capacity
Bi-directional solvent input
Secondary dewaxing
Solvent reclamation
Jacketed base for temperature control circulation
Drain valve for easy removal of extract
Sight glasses on collection base
100 micron filtration built into gasket
Rack Mounting
Jacketed LP with internal condensing coil

Benefits:
Rack mounting to prevent heavy lifting
Maximum oil yield
Full dewaxing without second solvent
Save money with solvent reclamation
Nitrogen assist to prevent vapor lock

Includes:
Extruded aluminum rack with pipe hangers
50L jacketed collection base
#100 LP tank
Solvent input manifold
6 x 36 material column
8 x 36 dewaxer with filter assembly
Stainless steel braided PTFE hoses
Buna-N tri-clamp gaskets
High pressure clamps

ADDITIONAL EQUIPMENT REQUIRED FOR OPERATION OF UNIT. THIS UNIT REQUIRES A VACUUM PUMP. DRY ICE. NITROGEN TANK WITH REGULATOR. AND HEATER CIRCULATOR TO FUNCTION.

It is also recommended to have a refrigerant scale to operate this unit. Chiller can be used with the jacketed LP tank for dual recovery condensing.

A Pro Series 21 cfm (BVVPS212B) vacuum pump is recommended for this system.

Technical Specs:
Dimensions: 68 Width x 78 Height. 30 Depth
Weight: 500 lbs
Max Allowable Working Pressure: 150 PSI
Operating Temperature Range: -40F ?C 200F
304 Stainless Steel Construction
High Polish Interior
Solvent Capacity: 50 lbs
