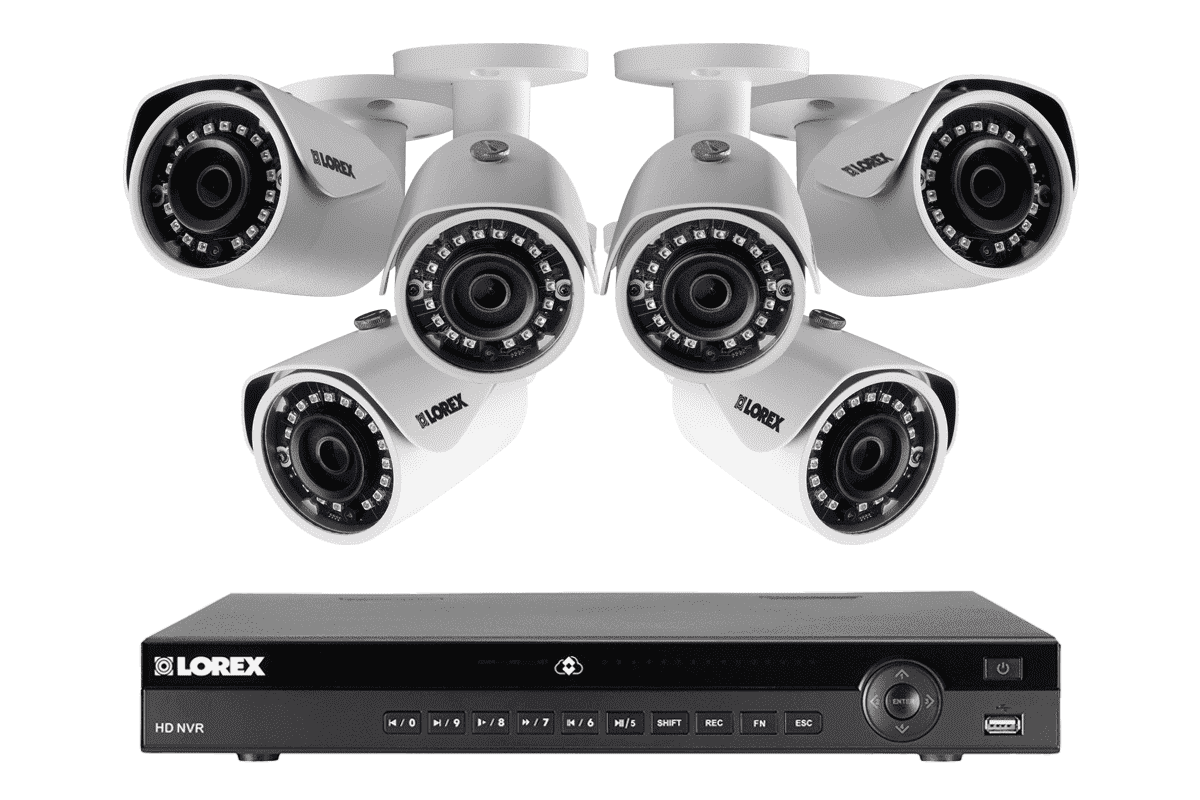

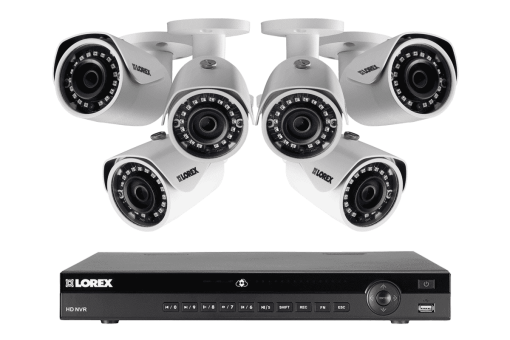

Lorex HDIP86W 6 Camera 8 Channel Weatherproof 2K Resolution Security Surveillance System New
$8.55
1000 in stock
| ?Brand new in box & manufacturer direct | |
| ?2 year factory warranty | |
| ?Remote monitoring using the Flir app | |
| ?All original accessories included | |
| ?Authorized Lorex?dealer | |
| ?Ships same or next business day |

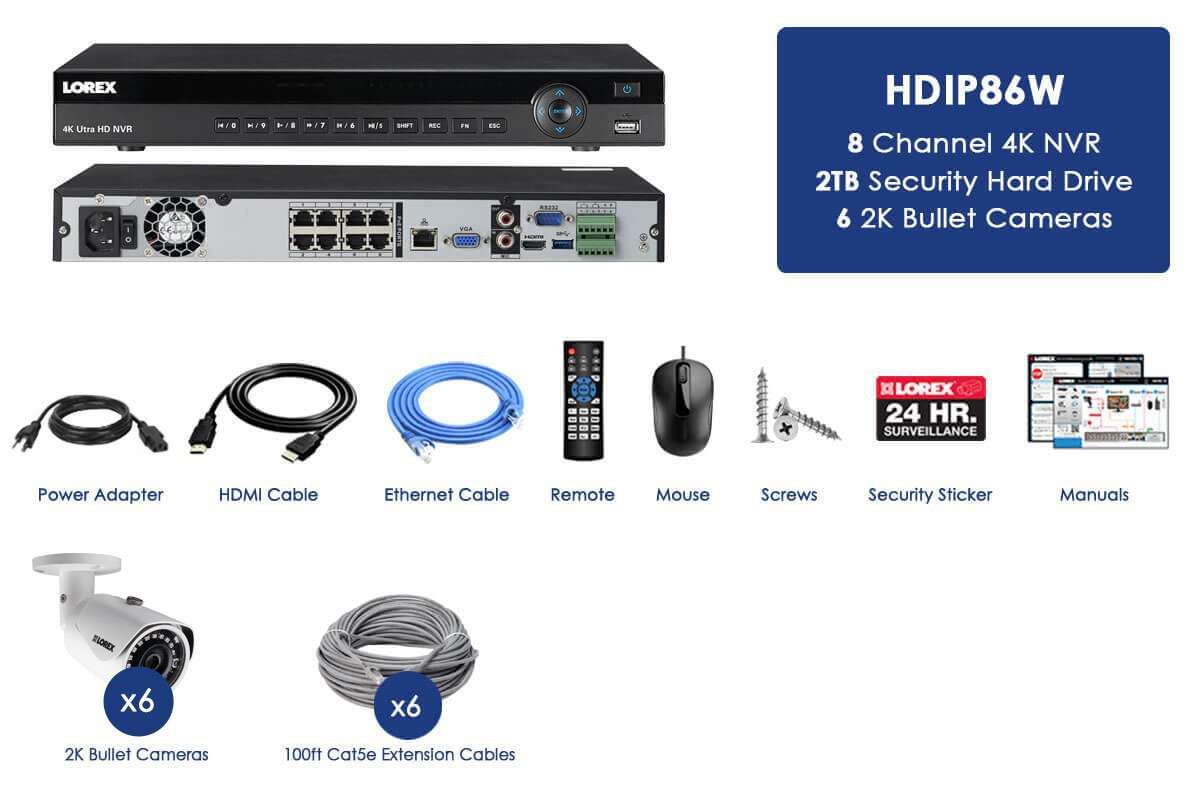

What’s in the box:

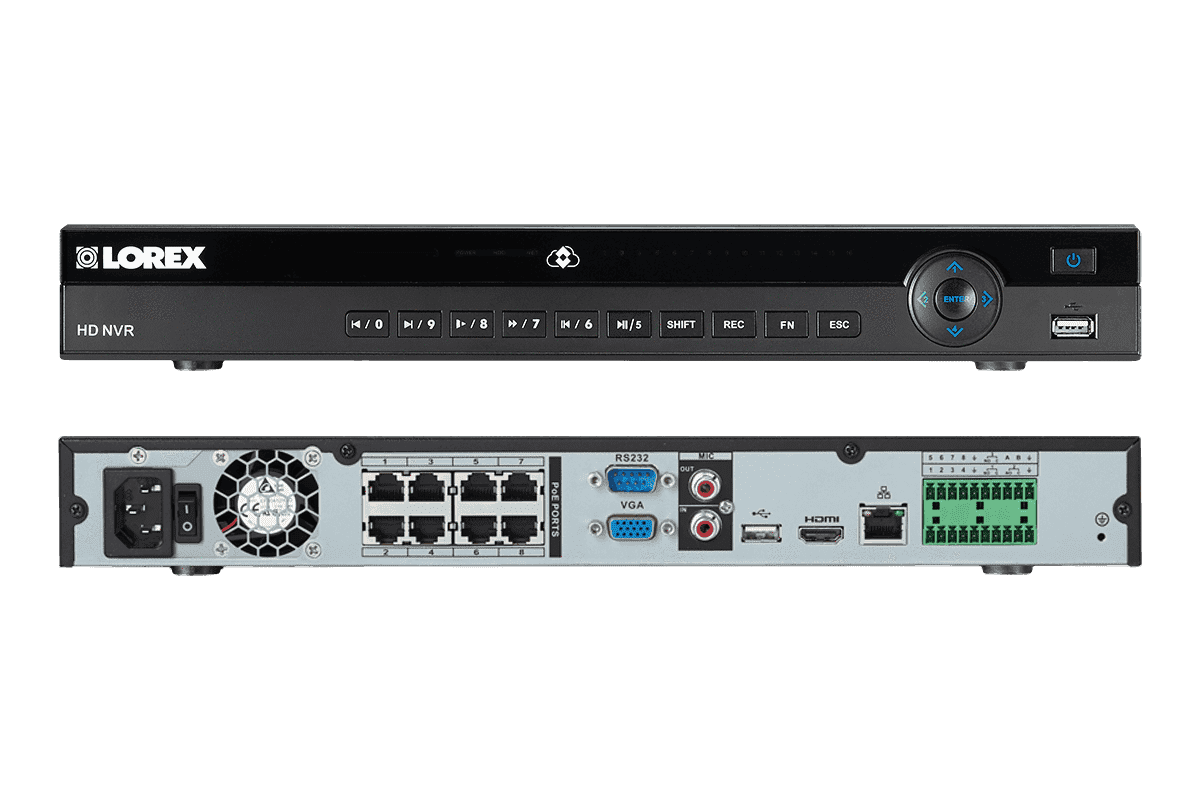

- 8 channel 4K? network video recorder

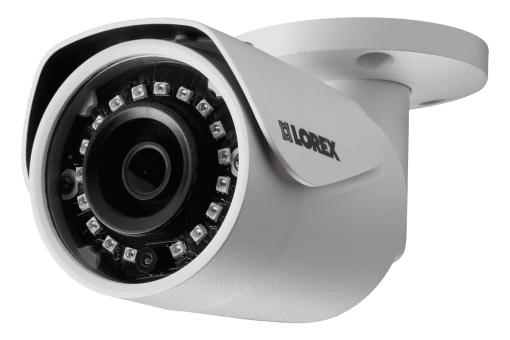

- 2K Bullet Cameras (6)
- 100ft Cat5e Extension Cable (6)
- Power Cable
- HDMI Cable
- Ethernet Cable
- Remote
- Mouse
- Manuals
?
Features:
8CHANNELS4K NVR can support up to 8 cameras |
6CAMERAS6 x 2K IP cameras |
130FTNIGHT VISIONMaximum night vision with Color Night Vision |
2TBHARD DRIVEMaximum Capacity 2 x 6TB hard drives |
- Real-time recording up to 8MP on all channels – 4¡Á the detail of 1080p
- Supports industry-leading 4K recording1
- 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
- RapidRecap? – see the day in a minute with hours of activity compiled into a short video summary
- FLIR Secure? apps for live viewing. playback. video recording & snapshots (iPhone? / iPad? / Android?)2
- PC and Mac compatible – FLIR Cloud? video management software gives you complete control over your security system from anywhere?2
- 24/7 security-grade pre-installed hard drive3
- Expandable high capacity storage up to 12TB (2¡Á6TB HDD)
- Automatically detects compatible IP cameras in the network4
- 4K video output – view multiple HD channels at once in full resolution on a 4K TV
- H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing3
- Mirror hard drive recording – secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive5
- Pentaplex Operation – view. record. playback. back up & remotely control the system simultaneously
- Click-and-drag digital zoom in live view and playback
- Convenient front panel button controls
- Accurate time stamps with NTP & daylight savings time
- Instant backup of live video to a USB flash drive
- Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date6
- Push notifications of motion events
- Instant email alerts with snapshot attachment
- Multi-streaming to conserve bandwidth
- Continuous. scheduled. and motion recording
- Dual video outputs (HDMI and VGA) to connect multiple monitors
- HDMI cable included for simple connection to HD amp; 4K TVs
?
Enhanced Security Monitoring with HDR
Your security camera uses HDR (High Dynamic Range) technology that works to ensure you capture the most important details. regardless of lighting conditions.?Dynamic range?is measured as the?difference?between the brightest point and the darkest point of the video. HDR technology uses this difference to automatically adjust the picture’s brightness. resulting in optimized. highly-detailed security video.
Enhanced Clarity in Low-Light Situations
Your camera uses DNR (Digital Noise Reduction) technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess. your camera provides a cleaner. more accurate image with better clarity. sharpness. and improved motion detection. enhancing your HD experience even in the dark! Not only does DNR reduce noise. but it reduces video file sizes as well. giving you greater disc space for storage.
Color Night Vision? and True HDR
Our exclusive?Color Night Vision? (CNV) lets you see fully colored images in low-light conditions?for clear identification at night. Most security cameras rely on IR night vision in low-lighting. which only provides black & white images. Capture more informative video evidence with full-color images. For a security camera that performs in all sorts of challenging lighting conditions.?True High Dynamic Range (HDR)?improves image clarity in high-contrast lighting. revealing details in extremely bright and dark areas of the image.
Use our FLIR Secure app to stay connected with your mobile App
Consolidate your entire security system into your handheld device or desktop computer simply by connecting your NR900 NVR to our hassle-free FLIR Secure? app. Eliminate complicated network setups and avoid port-forwarding issues. FLIR Secure organizes your security system (along with other FLIR Secure compatible cameras or systems) with a simple 3-step installation process. Just download the app for your smartphone. tablet. or computer. scan the QR code on your NVR and start accessing your entire security system via your mobile device or computer. App features include cloud storage. RapidRecap??videos. privacy mode (a first for DVR security systems). and custom mobile notifications for motion events.
Specifications:

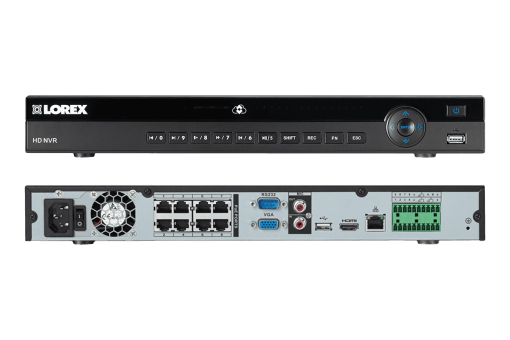

| Operating System | Linux (embedded) |
| Pentaplex | Simultaneous View. Record. Playback. Backup & Remote Monitoring |
| Number of Channels | 8/16/32 Channels |
| Video IN | 8ch: 8 PoE. 16/32ch: 16 PoE |
| Video OUT | No |
| VGA OUT | Yes |
| HDMI | Yes |
| Audio IN | 1 Line IN (RCA) for service only |
| Audio OUT | 1 Line OUT (RCA) for service only |
| USB Port | 1 at the back. 1 at the front |
| Alarm IN | 4 Alarm IN |
| Alarm OUT | 2 Alarm OUT |
| Video Output Resolution | 3840¡Á2160. 1920¡Á1080. 1280¡Á1024. 1280¡Á720. 1024¡Á768 |
| PTZ control | Lorex IP PTZ cameras only |
| Display | 8ch: 1/4/8. 16ch: 1/4/8/9/16. 32ch: 1/4/8/9/16/25/36 |
| Live Display Speed | 8ch: 240fps NTSC / 200fps PAL. 16ch: 480fps NTSC / 400fps PAL. 32ch: 960fps NTSC / 800fps PAL |
| OSD | ON/OFF |
| System Navigation | USB Mouse. IR Remote Control. Front Panel Buttons |
| Motion Area Setting | Fixed Grid (22¡Á18) |
| Sensitivity Levels | 100 |
| Firmware Upgrade | Automatic over the Internet & via USB device and network |
| User Authority | By user group |
| Time Synchronization | Automatic time sync by NTP server |
| Video Compression | H.264 / H.265 |
| Audio Compression | G.711 |
| Resolution | Up to 4K (3840¡Á2160). 1080p (1920¡Á1080) |
| Record Rate | 8ch: [email protected]/1080p/3MP/4MP/8MP. 16ch: [email protected]/1080p/3MP/4MP/8MP. 32ch: [email protected]/1080p/3MP/4MP/8MP |
| Recording Resolution Setting | Per camera for different resolutions |
| Recording Quality Control | 6 Levels |
| Recording Schedule | By hour. by day. by recording mode. by motion. by alarm. by channel |
| Pre Recording | Max. 4 Secs |
| Post Recording | Max. 5 Minutes |
| Reliability | Watch-Dog. auto-recovery after power failure |
| Covert Video | Yes |
| Playback Channel | 1CH/[email protected]. [email protected]. [email protected] |
| Playback Speed | Variable Max 16x |
| Playback Players | Backup Player |
| Search | By Time & Event |
| Log Search | Up to 1.000 lines for motion detected. configuration. changes. connects/disconnects and video loss |
| Audio Play | Yes (audio camera required) |
| Storage | Up to 2 HDDs (SATA) |
| Maximum Capacity | Up to 2¡Á6TB (12TB Max) |
| Backup Media | USB Flash Drive & HDD |
| Backup File Format | DAV or ASF File |
| Cloud Connection | FLIR Secure? |
| Supported Operating Systems | Windows? / Mac OS X |
| Remote Software | Client Software (PC & Mac) |
| Email Notification | Text with snapshot |
| Instant Smart Phone & Tablet | Android?. iPad?. iPhone? |
| DDNS | Free Lorex DDNS |
| System Configuration | Full setup configuration over network |
| Ports | Programmable by User |
| Network Protocol | HTTP. IPv4/IPv6. TCP/IP. UPNP. RTSP. UDP. SMTP. NTP. DHCP. DNS. PPPOE. DDNS. FTP. IP Filter |
| Network Interface | 10/100/1000-Base-TX. RJ-45 |
| Network Bit Rate | 320Mbps total. 48~8192kbps per camera |
| Power Consumption | Approx. 15W (no HDD included) |
| Supply Voltage | 100VAC-240VAC. 50/60Hz |
| Total PoE Power Output | 130W (Max 25W per Camera) |
| Unit Dimensions (W ¡Á D ¡Á H) | 14.7 ¡Á 12.9 ¡Á 2.1″ / 375 ¡Á 327 ¡Á 53mm |
| Unit Weight | 8ch: 5.1lbs / 2.6kg. 16/32ch: 13.2lbs / 2.7kg |
| Operating Temperature | 14¡ã ~ 131¡ãF / -10¡ã ~ 55¡ãC |
| Humidity | 10 ~ 90% RH |

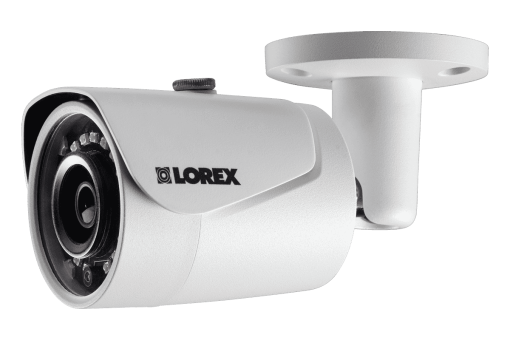

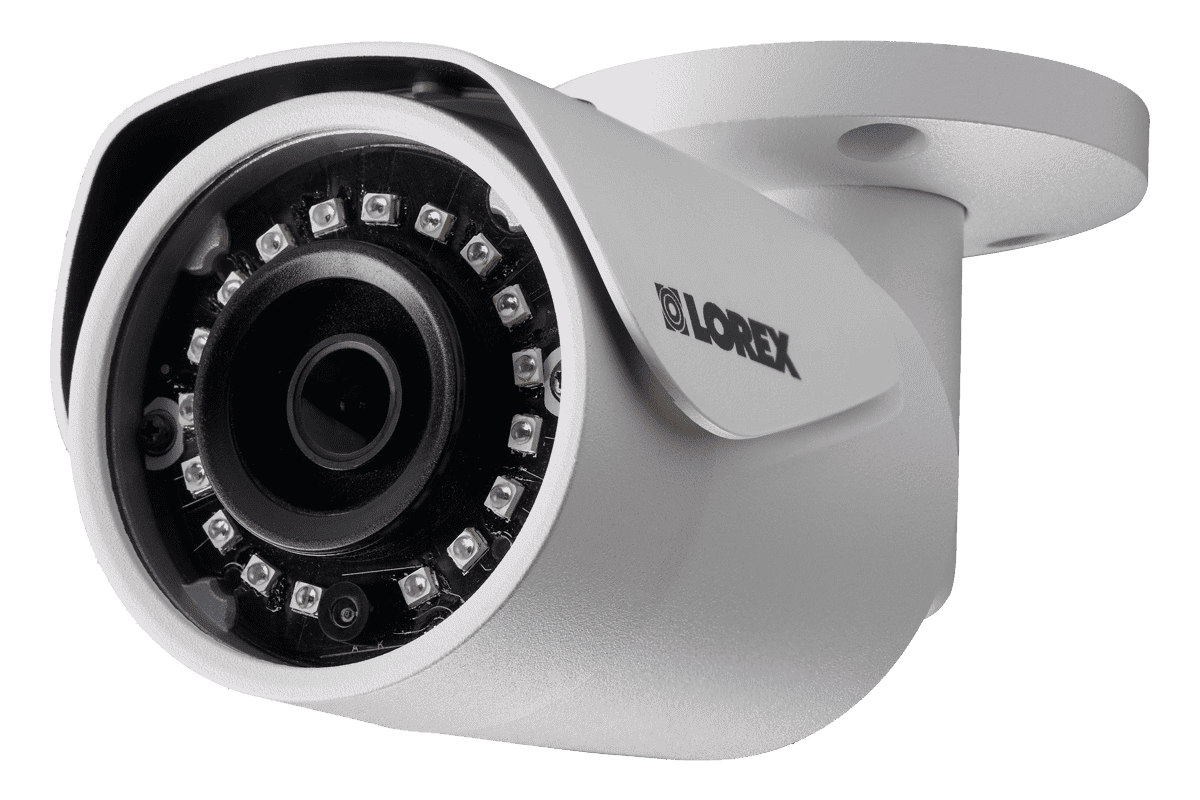

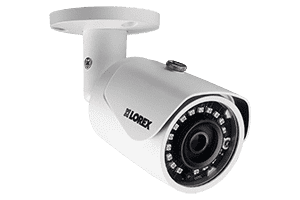

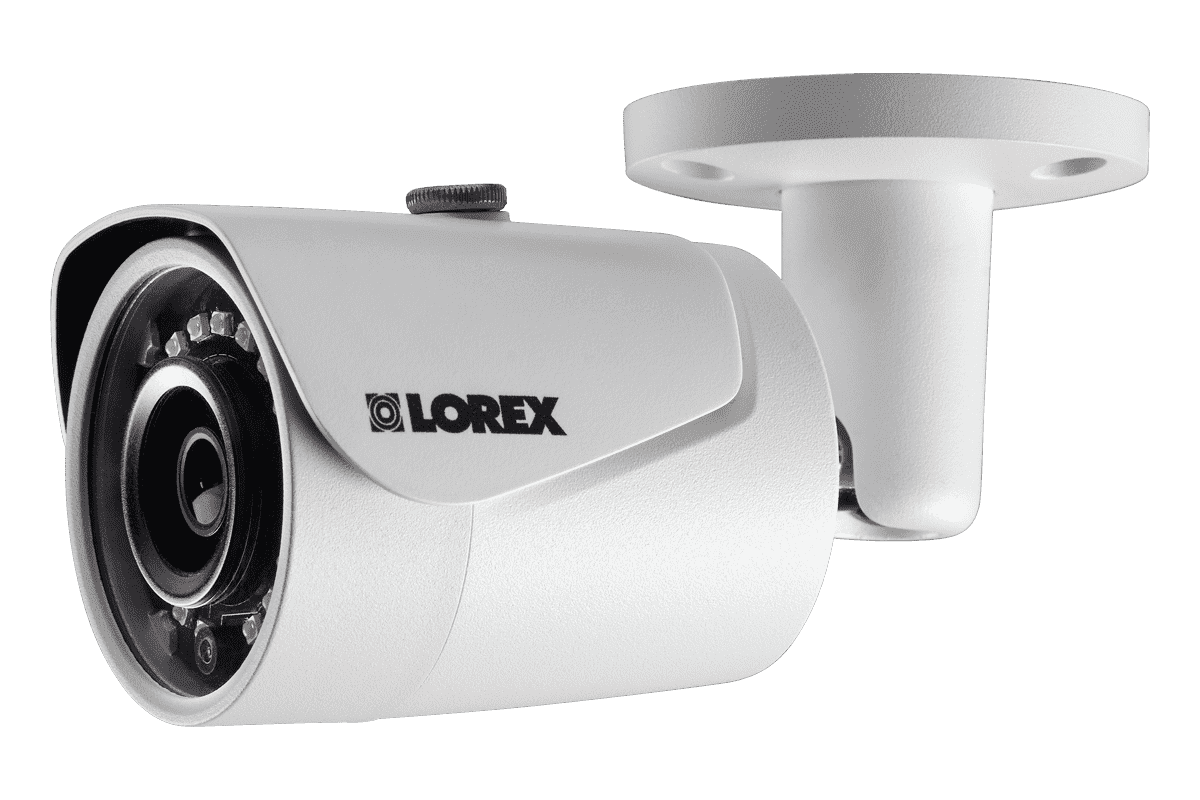

| Image Sensor | 1/3″ 4MP |
| Video Format | NTSC / PAL |
| Compression | H.265/H.264 |
| Effective Pixels | H: 2688 ¡Á V: 1520 |
| Resolution | 4MP (2688¡Á1520) @ 20fps |
| Scan System | Progressive |
| Sync System | Internal |
| S/N Ratio | ¡Ý42dB (AGC OFF) |
| Iris | EIS |
| AES Shutter Speed | 1/3 (1/4) ~ 1/100.000s |
| Min. Illumination | 0.38 lux without IR. 0.28 lux with IR |
| Video Output | IP |
| Lens / Lens Type | 3.6mm F2.0 / Fixed |
| Field of View (Horizontal) | 83¡ã |
| Termination | RJ45 Ethernet / 12V DC Power Barrel (optional) |
| IR LED Type | 850nm |
| Night Vision Range | 130ft (40m) / 90ft (27m) |
| Color Night Vision? | Yes |
| Power Requirement | PoE (Power over Ethernet) Class 1 / 12V DC |
| Power Consumption | Max. 265mA / 3.2W |
| Operating Temp. Range | -22¡ã ~ 140¡ãF / -30¡ã ~ 60¡ãC |
| Operating Humidity Range | <95% RH |
| Environmental Rating | IP66 (Indoor / Outdoor) |
| Weight | 0.9lbs / 0.4kg |
