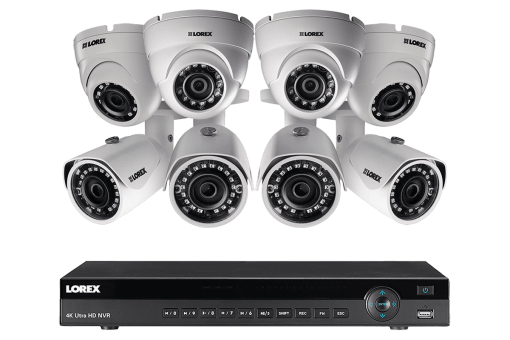

Lorex LN10802168W 8 Camera 16 Channel NVR 2K IP IndoorOutdoor Surveillance Security System New
$10.05
1000 in stock
?
| ?Brand new in box & manufacturer direct | |
| ?2 year factory warranty | |
| ?Remote monitoring using the Flir app | |
| ?All original accessories included | |
| ?Authorized Lorex?dealer | |
| ?Ships same or next business day |

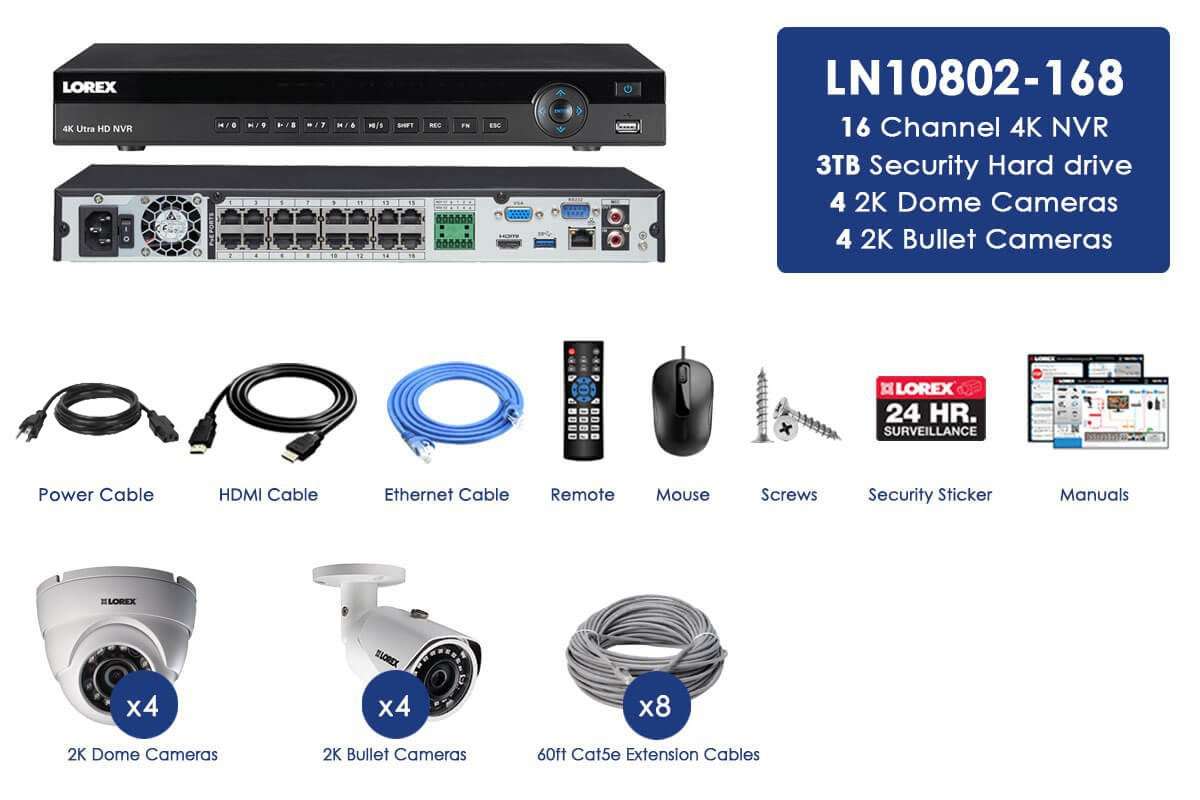

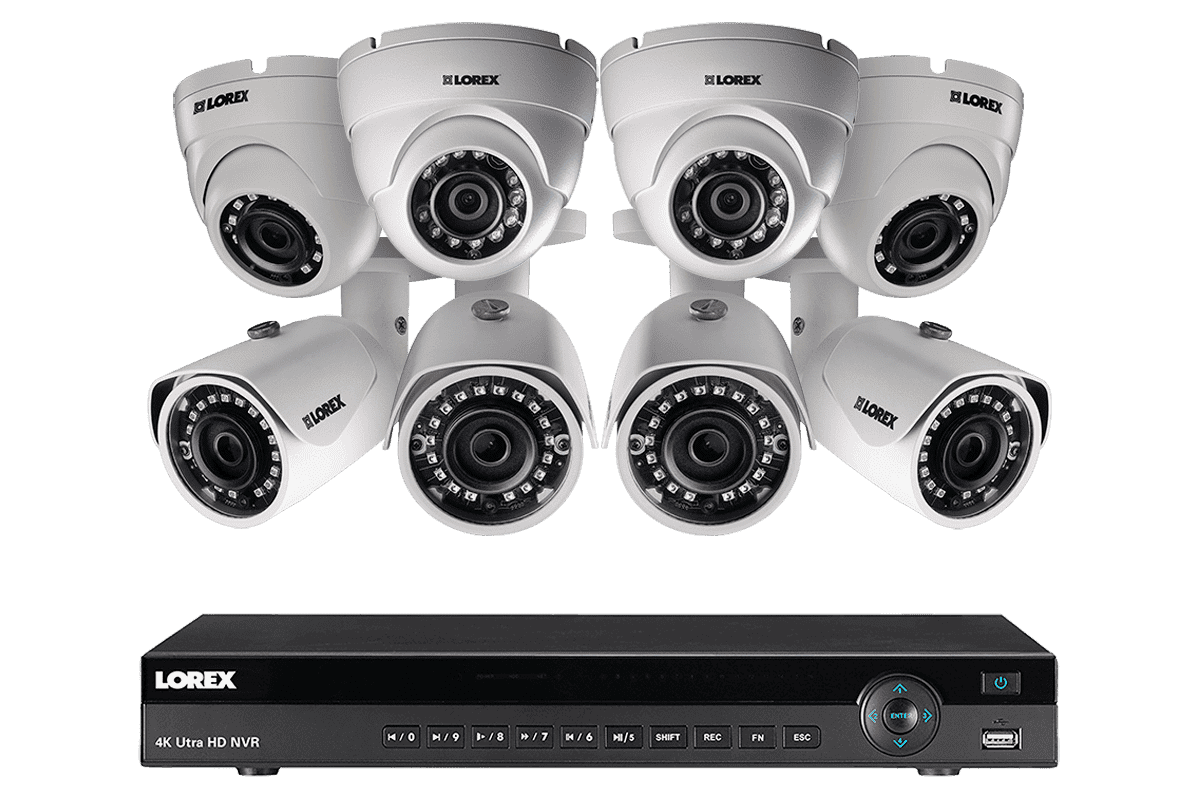

What’s in the box:
- NR9163 16 channel 4K ultra HD network video recorder

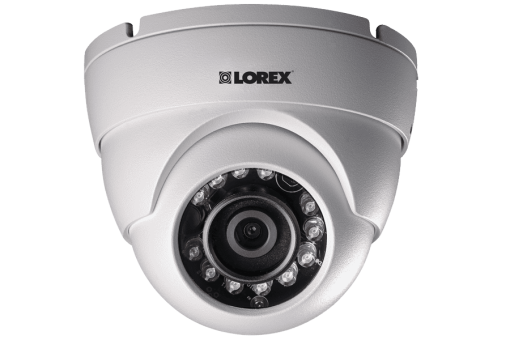

- 2K Dome Cameras (4)
- 2K Bullet Cameras (4)
- 60ft Cat5e Extension Cable?(8)
- Power Cable
- HDMI Cable
- Ethernet Cable
- Remote
- Mouse
- Manuals
?
Features:
16CHANNELS1080P DVR can support up to 16 cameras |
8CAMERAS4 bullet and 4 dome 2K cameras |
130FTNIGHT VISIONMaximum night vision |
3TBHARD DRIVEMaximum capacity 1 x 12TB hard drive |

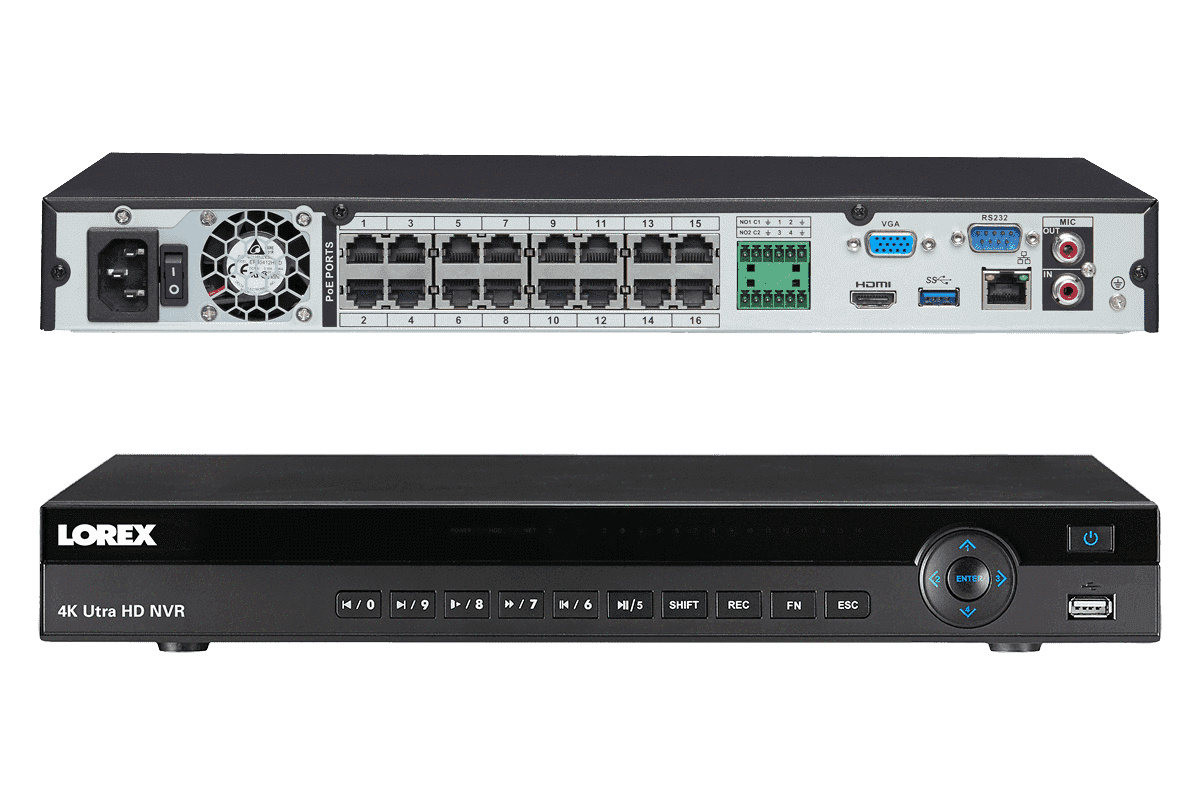

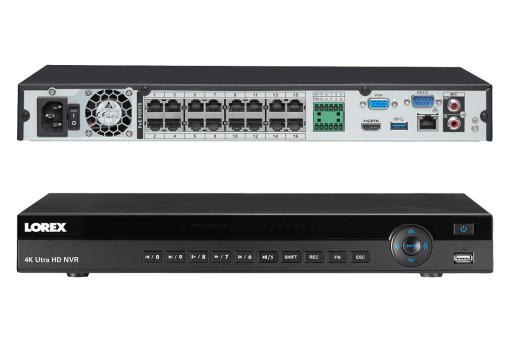

16 channel. 4K ultra HD network video recorder:
- Real-time recording up to 8MP on all channels – 4¡Á the detail of 1080p
- Supports industry-leading 4K recording1
- 8/16 built in PoE (Power over Ethernet) ports providing video and power over a single Ethernet cable
- RapidRecap? – see the day in a minute with hours of activity compiled into a short video summary
- FLIR Secure? apps for live viewing. playback. video recording & snapshots (iPhone? / iPad? / Android?)2
- PC and Mac compatible – FLIR Cloud? video management software gives you complete control over your security system from anywhere?2
- 24/7 security-grade pre-installed hard drive3
- Expandable high capacity storage up to 12TB (2¡Á6TB HDD)
- Automatically detects compatible IP cameras in the network4
- 4K video output – view multiple HD channels at once in full resolution on a 4K TV
- H.265 / H.264 video compression offers reduced file size and improved network performance for remote viewing3
- Mirror hard drive recording – secure your recordings by backing up footage to an internal hard drive at the same time as recording to the primary hard drive5
- Pentaplex Operation – view. record. playback. back up & remotely control the system simultaneously
- Click-and-drag digital zoom in live view and playback
- Convenient front panel button controls
- Accurate time stamps with NTP & daylight savings time
- Instant backup of live video to a USB flash drive
- Automatic firmware upgrade over the Internet ensures your system is secure and up-to-date6
- Push notifications of motion events
- Instant email alerts with snapshot attachment
- Multi-streaming to conserve bandwidth
- Continuous. scheduled. and motion recording
- Dual video outputs (HDMI and VGA) to connect multiple monitors
- HDMI cable included for simple connection to HD amp; 4K TVs
?

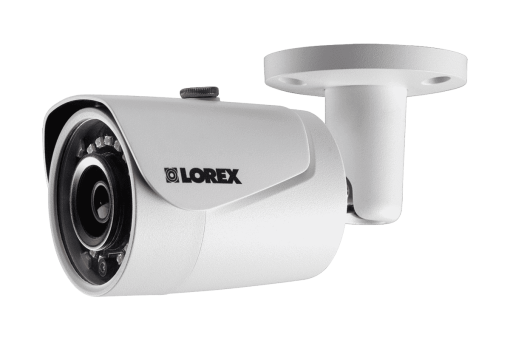

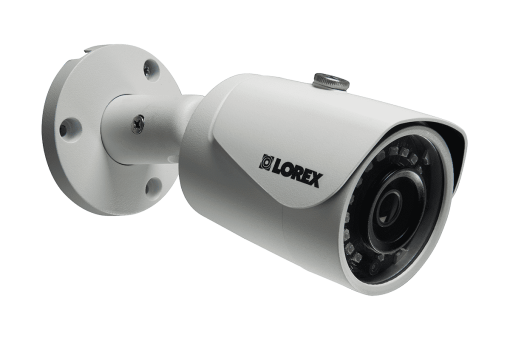

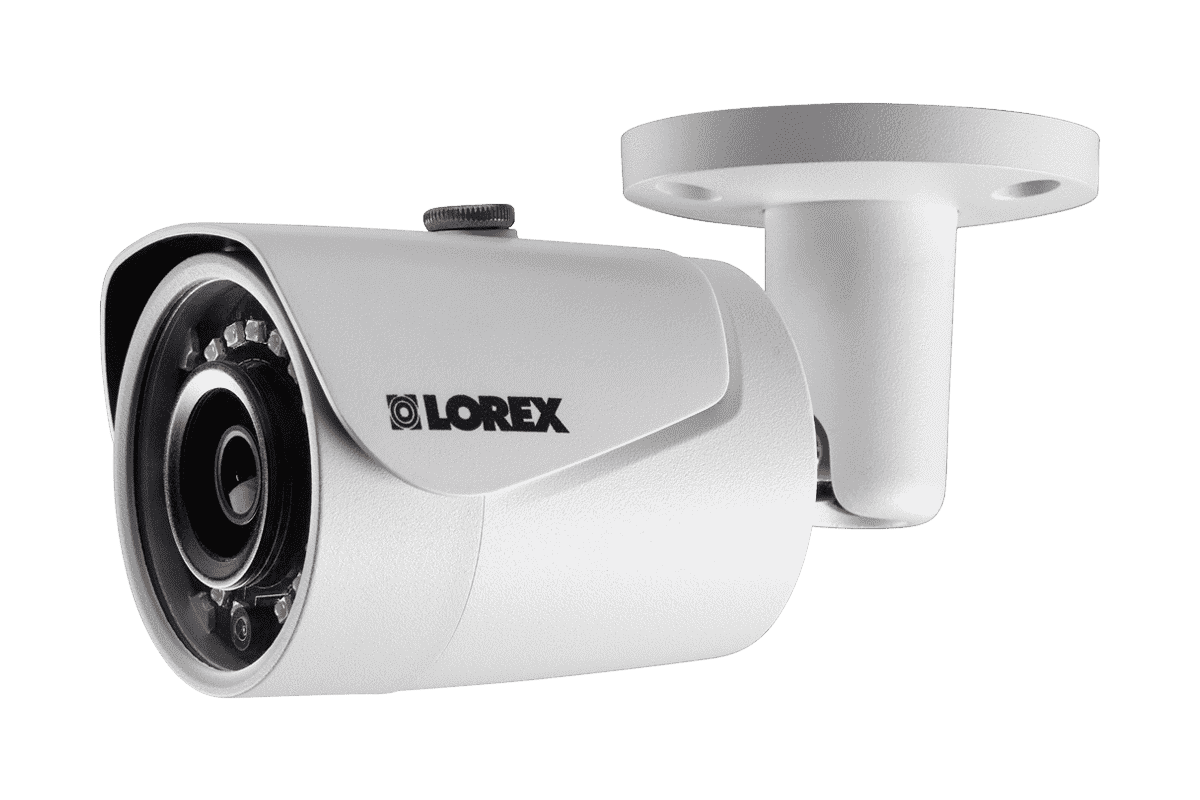

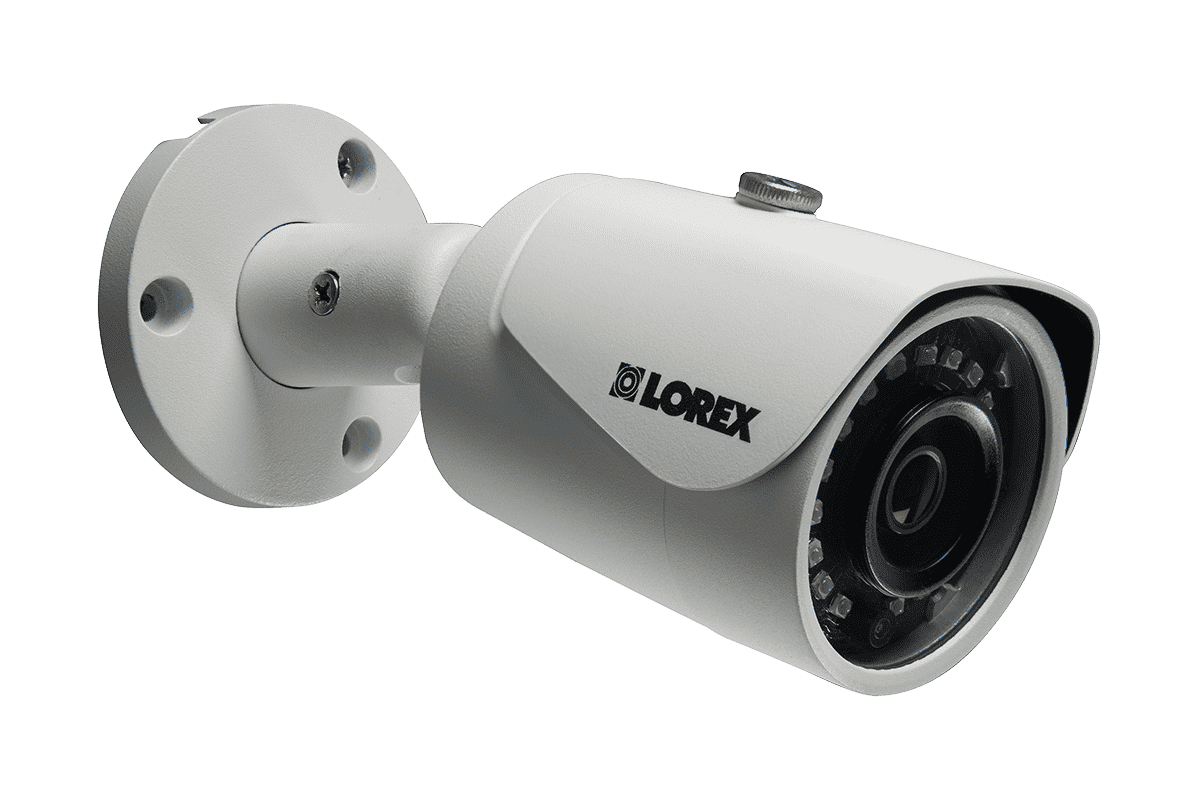

Full Metal Camera Housings
Built from a solid unibody metal housing. the LNE3162B and LNB3163B allow for durability while still maintaining a lightweight design. The corrosion-resistant aluminum bodies make these cameras perfect for both indoor and outdoor use. protecting them from even the harshest of weather; rain. snow. or hail. Engineered from the same material that is used in construction of airplanes and cars. these Lorex cameras are strong enough to withstand large impacts unlike conventional plastic security cameras.
?
With or Without the Internet
Standalone camera systems do not need the internet to operate. However. an internet connection will be necessary if you wish to use a smartphone. tablet or computer to access features such as remote monitoring.
?
Connects directly to TVs and Monitors
Easily watch live video feeds or review video footage on most Monitors or HD TVs by using the included HDMI cable.
?
NVR Network Video Recorder
Security NVRs will connect to IP cameras using CAT5 network cables and will store pre-compressed video footage from IP cameras.
?
2K Super HD Resolution (2¡Á1080p Full HD)
2K resolution offers twice the resolution of 1080p with approximately 2000 horizontal pixels. This new level of details will vividly improve the video quality of your security footage.
?
24/7 100% Duty cycle hard drive pre-installed
The hard drives are designed to work in a security environment. including simultaneous recording & playback from various streams.
?
ONVIF Compliant
ONVIF is an open standard?protocol for IP Network Cameras to?communicate easily with Network Video Recorder (NVR) devices.
?
Specifications:
| Operating System | Linux (embedded) |
| Pentaplex | Simultaneous View. Record. Playback. Backup & Remote Monitoring |
| Number of Channels | 8/16/32 Channels |
| Video IN | 8ch: 8 PoE. 16/32ch: 16 PoE |
| Video OUT | No |
| VGA OUT | Yes |
| HDMI | Yes |
| Audio IN | 1 Line IN (RCA) for service only |
| Audio OUT | 1 Line OUT (RCA) for service only |
| USB Port | 1 at the back. 1 at the front |
| Alarm IN | 4 Alarm IN |
| Alarm OUT | 2 Alarm OUT |
| Video Output Resolution | 3840¡Á2160. 1920¡Á1080. 1280¡Á1024. 1280¡Á720. 1024¡Á768 |
| PTZ control | Lorex IP PTZ cameras only |
| Display | 8ch: 1/4/8. 16ch: 1/4/8/9/16. 32ch: 1/4/8/9/16/25/36 |
| Live Display Speed | 8ch: 240fps NTSC / 200fps PAL. 16ch: 480fps NTSC / 400fps PAL. 32ch: 960fps NTSC / 800fps PAL |
| OSD | ON/OFF |
| System Navigation | USB Mouse. IR Remote Control. Front Panel Buttons |
| Motion Area Setting | Fixed Grid (22¡Á18) |
| Sensitivity Levels | 100 |
| Firmware Upgrade | Automatic over the Internet & via USB device and network |
| User Authority | By user group |
| Time Synchronization | Automatic time sync by NTP server |
| Video Compression | H.264 / H.265 |
| Audio Compression | G.711 |
| Resolution | Up to 4K (3840¡Á2160). 1080p (1920¡Á1080) |
| Record Rate | 8ch: [email protected]/1080p/3MP/4MP/8MP. 16ch: [email protected]/1080p/3MP/4MP/8MP. 32ch: [email protected]/1080p/3MP/4MP/8MP |
| Recording Resolution Setting | Per camera for different resolutions |
| Recording Quality Control | 6 Levels |
| Recording Schedule | By hour. by day. by recording mode. by motion. by alarm. by channel |
| Pre Recording | Max. 4 Secs |
| Post Recording | Max. 5 Minutes |
| Reliability | Watch-Dog. auto-recovery after power failure |
| Covert Video | Yes |
| Playback Channel | 1CH/[email protected]. [email protected]. [email protected] |
| Playback Speed | Variable Max 16x |
| Playback Players | Backup Player |
| Search | By Time & Event |
| Log Search | Up to 1.000 lines for motion detected. configuration. changes. connects/disconnects and video loss |
| Audio Play | Yes (audio camera required) |
| Storage | Up to 2 HDDs (SATA) |
| Maximum Capacity | Up to 2¡Á6TB (12TB Max) |
| Backup Media | USB Flash Drive & HDD |
| Backup File Format | DAV or ASF File |
| Cloud Connection | FLIR Secure? |
| Supported Operating Systems | Windows? / Mac OS X |
| Remote Software | Client Software (PC & Mac) |
| Email Notification | Text with snapshot |
| Instant Smart Phone & Tablet | Android?. iPad?. iPhone? |
| DDNS | Free Lorex DDNS |
| System Configuration | Full setup configuration over network |
| Ports | Programmable by User |
| Network Protocol | HTTP. IPv4/IPv6. TCP/IP. UPNP. RTSP. UDP. SMTP. NTP. DHCP. DNS. PPPOE. DDNS. FTP. IP Filter |
| Network Interface | 10/100/1000-Base-TX. RJ-45 |
| Network Bit Rate | 320Mbps total. 48~8192kbps per camera |
| Power Consumption | Approx. 15W (no HDD included) |
| Supply Voltage | 100VAC-240VAC. 50/60Hz |
| Total PoE Power Output | 130W (Max 25W per Camera) |
| Unit Dimensions (W ¡Á D ¡Á H) | 14.7 ¡Á 12.9 ¡Á 2.1″ / 375 ¡Á 327 ¡Á 53mm |
| Unit Weight | 8ch: 5.1lbs / 2.6kg. 16/32ch: 13.2lbs / 2.7kg |
| Operating Temperature | 14¡ã ~ 131¡ãF / -10¡ã ~ 55¡ãC |
| Humidity | 10 ~ 90% RH |
