Lorex LN1080284W 4 Camera 8 Channel NVR 2K IP IndoorOutdoor Surveillance Security System New
$8.40
1000 in stock
| ?Brand new in box & manufacturer direct | |
| ?2 year factory warranty | |
| ?Remote monitoring using the Flir app | |
| ?All original accessories included | |
| ?Authorized Lorex?dealer | |
| ?Ships same or next business day |

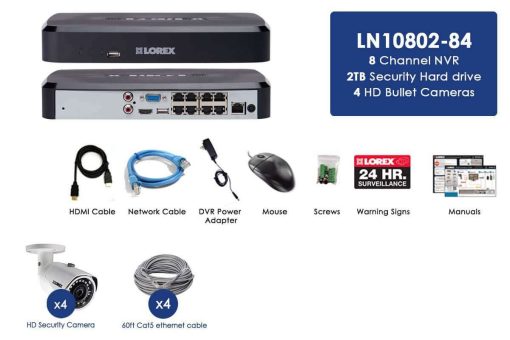

What’s in the box:
- 8 channel 2K HD network video recorder
- HD Security Cameras (4)
- 60ft Cat5e Extension Cable (4)
- Network?Cable
- HDMI Cable
- DVR Power Adapter
- Mouse
- Manuals
?
Features:
8CHANNELSHD NVR supports up to 8 cameras |
4CAMERAS4 ¡Á 4MP HD bullet cameras |
130FTNIGHT VISIONMaximum night vision |
2TBHARD DRIVEMaximum capacity 1 x 4TB hard drive |

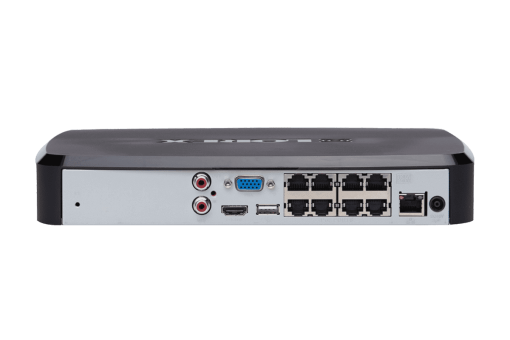

LNR1182
8 channel HD 2K security NVR
- High definition 2K recording
- Real-time recording at 25/30fps per channel1
- 8 built-in PoE (Power over Ethernet) ports providing video and power on a single Ethernet cable
- Automatically detects compatible IP cameras in the network2
- Expand your system with a network PoE switch. sold separately3
- 24/7 security-grade hard drive4
- Continuous. scheduled and motion recording
- Simultaneous playback and live view on the same screen
- Selectable area digital zoom in live view and playback
- Accurate time stamps with NTP & daylight savings time
- H.264 video compression4
- Instant USB backup of live video from selected camera
- 2 video outputs (HDMI & VGA) to connect multiple monitors
- HDMI cable included for simple connection to HD TVs
- Keep up to date with automatic firmware upgrades5
- 3-step remote view with FLIR Cloud?6
- PC and Mac compatible7
- Free iOS? and Android? compatible apps with live viewing. playback. video recording. and snap shot7
- Dedicated iPad app with multi-channel live viewing and playback7
- Push notifications of motion events
- Instant email alerts with snap shot attachment
- Dual streaming to conserve bandwidth
LNB3163B
3MP HD IP security camera features:
- High definition 3MP image sensor delivers 50% more detail than 1080p1
- Infrared cut filter ensures accurate color representation
- Night vision range up to 130ft (40m) in ambient lighting & 90ft (28m) in total darkness2
- Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
- ClearNight imaging for improved low light performance and improved recording efficiency
- 75¡ã field of view (horizontal)
- Ceiling / wall mountable
- Simple camera installation using a single CAT5e cable with Power over Ethernet (PoE)
- 60ft (18m) UL-compliant cable suitable for surface and in-wall installation
- Extend the camera¡¯s video and power with a single Ethernet cable up to 300ft (91m) from the recorder
- Single-screw bracket adjustment for faster installation
- Cold climate capability (-22¡ãF / -30¡ãC)
- Weatherproof for outdoor & indoor installation (IP66 Rated)3
Specifications:
| Image Sensor | 1/3″ 3MP |
| Video Format | NTSC / PAL |
| Effective Pixels | H: 2304 ¡Á V: 1536 |
| Resolution | 3MP (2048¡Á1536) @ 25fps |
| Scan System | Progressive |
| S/N Ratio | ¡Ý56dB (AGC OFF) |
| Iris | EIS |
| AES Shutter Speed | 1/3 (1/4) ~ 1/100.000s |
| Min. Illumination | 0.7 lux without IR. 0.4 lux with IR |
| Video Output | IP |
| Lens / Lens Type | 2.8mm F2.0 / Fixed |
| Field of View (Horizontal) | 75¡ã |
| Termination | RJ45 Ethernet / 12V DC Power Barrel (optional) |
| IR LED Type | 850nm |
| Night Vision Range | 130ft (40m) / 90ft (27m) |
| Color Night Vision? | Yes |
| Power Requirement | PoE (Power over Ethernet) Class 3 / 12V DC |
| Power Consumption | Max. 285mA / 3.4W |
| Operating Temp. Range | -22¡ã ~ 140¡ãF / -30¡ã ~ 60¡ãC |
| Operating Humidity Range | <95% RH |
| Environmental Rating | IP66 (Indoor / Outdoor) |
| Weight | 0.9lbs / 0.4kg |
| Operating System | Linux (embedded) |
| Pentaplex | Simultaneous View. Record. Playback. Backup & Remote Monitoring |
| Number of Channels | 8/16/32 Channels |
| Video IN | 8ch: 8 PoE. 16/32ch: 16 PoE |
| Video OUT | No |
| VGA OUT | Yes |
| HDMI | Yes |
| Audio IN | 1 Line IN (RCA) for service only |
| Audio OUT | 1 Line OUT (RCA) for service only |
| USB Port | 1 at the back. 1 at the front |
| Alarm IN | 4 Alarm IN |
| Alarm OUT | 2 Alarm OUT |
| Video Output Resolution | 3840¡Á2160. 1920¡Á1080. 1280¡Á1024. 1280¡Á720. 1024¡Á768 |
| PTZ control | Lorex IP PTZ cameras only |
| Display | 8ch: 1/4/8. 16ch: 1/4/8/9/16. 32ch: 1/4/8/9/16/25/36 |
| Live Display Speed | 8ch: 240fps NTSC / 200fps PAL. 16ch: 480fps NTSC / 400fps PAL. 32ch: 960fps NTSC / 800fps PAL |
| OSD | ON/OFF |
| System Navigation | USB Mouse. IR Remote Control. Front Panel Buttons |
| Motion Area Setting | Fixed Grid (22¡Á18) |
| Sensitivity Levels | 100 |
| Firmware Upgrade | Automatic over the Internet & via USB device and network |
| User Authority | By user group |
| Time Synchronization | Automatic time sync by NTP server |
| Video Compression | H.264 / H.265 |
| Audio Compression | G.711 |
| Resolution | Up to 4K (3840¡Á2160). 1080p (1920¡Á1080) |
| Record Rate | 8ch: [email protected]/1080p/3MP/4MP/8MP. 16ch: [email protected]/1080p/3MP/4MP/8MP. 32ch: [email protected]/1080p/3MP/4MP/8MP |
| Recording Resolution Setting | Per camera for different resolutions |
| Recording Quality Control | 6 Levels |
| Recording Schedule | By hour. by day. by recording mode. by motion. by alarm. by channel |
| Pre Recording | Max. 4 Secs |
| Post Recording | Max. 5 Minutes |
| Reliability | Watch-Dog. auto-recovery after power failure |
| Covert Video | Yes |
| Playback Channel | 1CH/[email protected]. [email protected]. [email protected] |
| Playback Speed | Variable Max 16x |
| Playback Players | Backup Player |
| Search | By Time & Event |
| Log Search | Up to 1.000 lines for motion detected. configuration. changes. connects/disconnects and video loss |
| Audio Play | Yes (audio camera required) |
| Storage | Up to 2 HDDs (SATA) |
| Maximum Capacity | Up to 2¡Á6TB (12TB Max) |
| Backup Media | USB Flash Drive & HDD |
| Backup File Format | DAV or ASF File |
| Cloud Connection | FLIR Secure? |
| Supported Operating Systems | Windows? / Mac OS X |
| Remote Software | Client Software (PC & Mac) |
| Email Notification | Text with snapshot |
| Instant Smart Phone & Tablet | Android?. iPad?. iPhone? |
| DDNS | Free Lorex DDNS |
| System Configuration | Full setup configuration over network |
| Ports | Programmable by User |
| Network Protocol | HTTP. IPv4/IPv6. TCP/IP. UPNP. RTSP. UDP. SMTP. NTP. DHCP. DNS. PPPOE. DDNS. FTP. IP Filter |
| Network Interface | 10/100/1000-Base-TX. RJ-45 |
| Network Bit Rate | 320Mbps total. 48~8192kbps per camera |
| Power Consumption | Approx. 15W (no HDD included) |
| Supply Voltage | 100VAC-240VAC. 50/60Hz |
| Total PoE Power Output | 130W (Max 25W per Camera) |
| Unit Dimensions (W ¡Á D ¡Á H) | 14.7 ¡Á 12.9 ¡Á 2.1″ / 375 ¡Á 327 ¡Á 53mm |
| Unit Weight | 8ch: 5.1lbs / 2.6kg. 16/32ch: 13.2lbs / 2.7kg |
| Operating Temperature | 14¡ã ~ 131¡ãF / -10¡ã ~ 55¡ãC |
| Humidity | 10 ~ 90% RH |
As a Lorex authorized dealer.?this product comes with a 2 year factory warranty.
