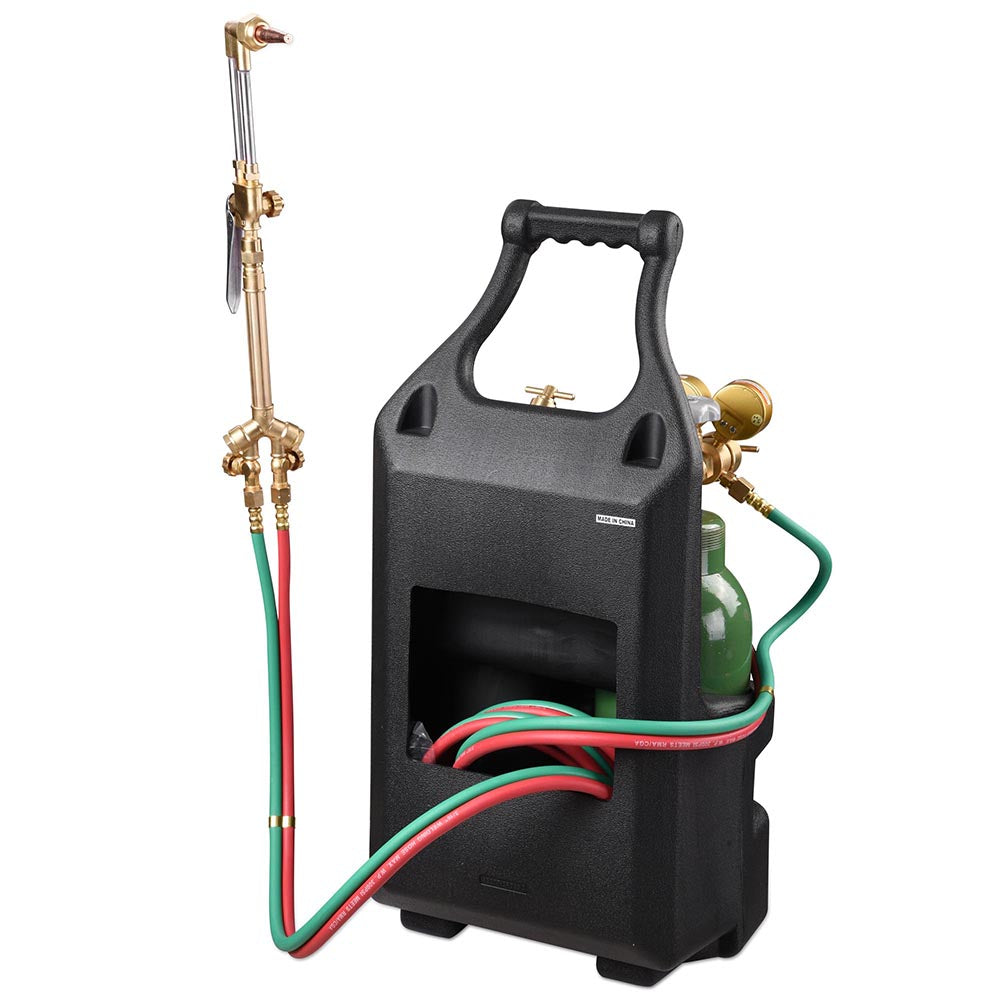

TheLAShop DOT Victor-Style Welding Cutting Torch Kit w/ Tote Refillable Tanks

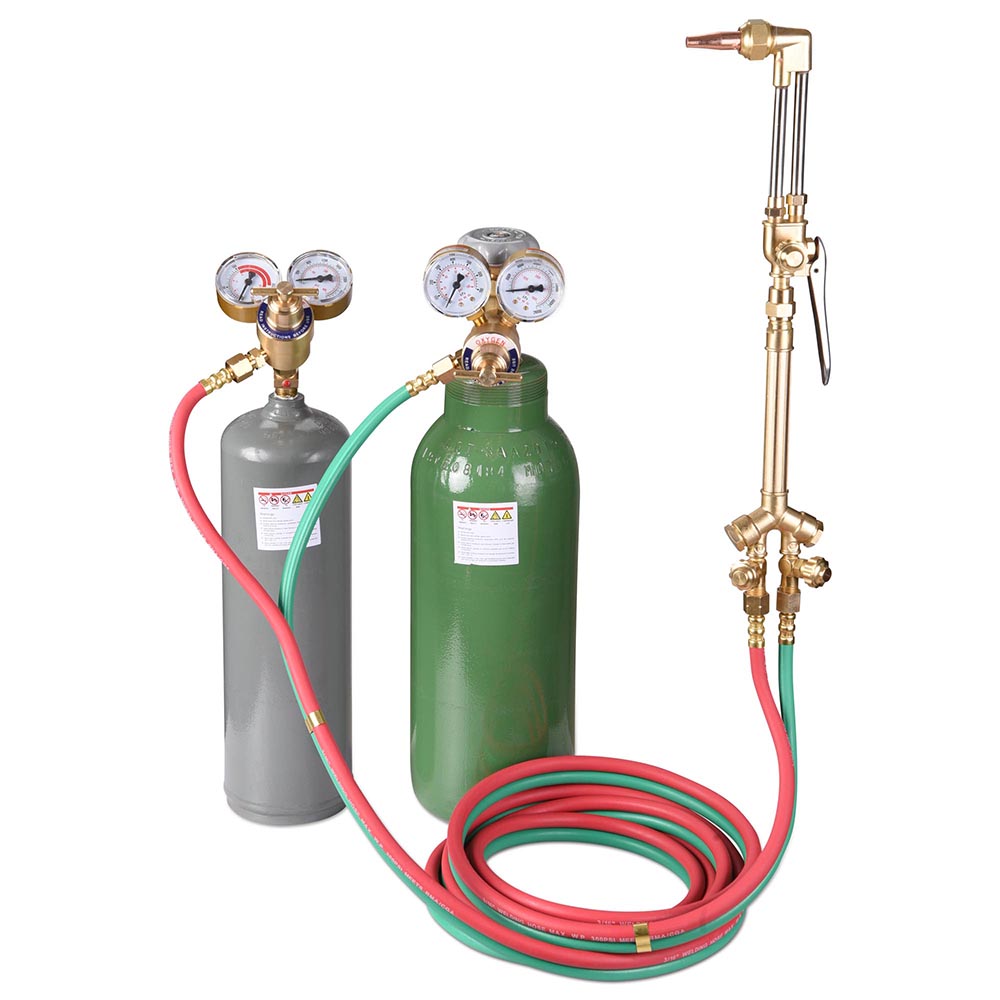

This is a Victor-Style Welding & Cutting Oxy Acetylene Torch kit With Portable Tote and Refillable Tanks DOT certification. Our complete gas-welding accessory kit includes a 20 cubic feet. oxygen tank and 10 cubic feet. acetylene tank with regulators. along with full brass torch assembly. Use this oxyacetylene torch for welding pipes and tubes. and other metal repair work. It’s also used to fabricate metal artwork. Use it for iron or steel welding. plus brazing. braze-welding. cutting. bending and forming.

Features:

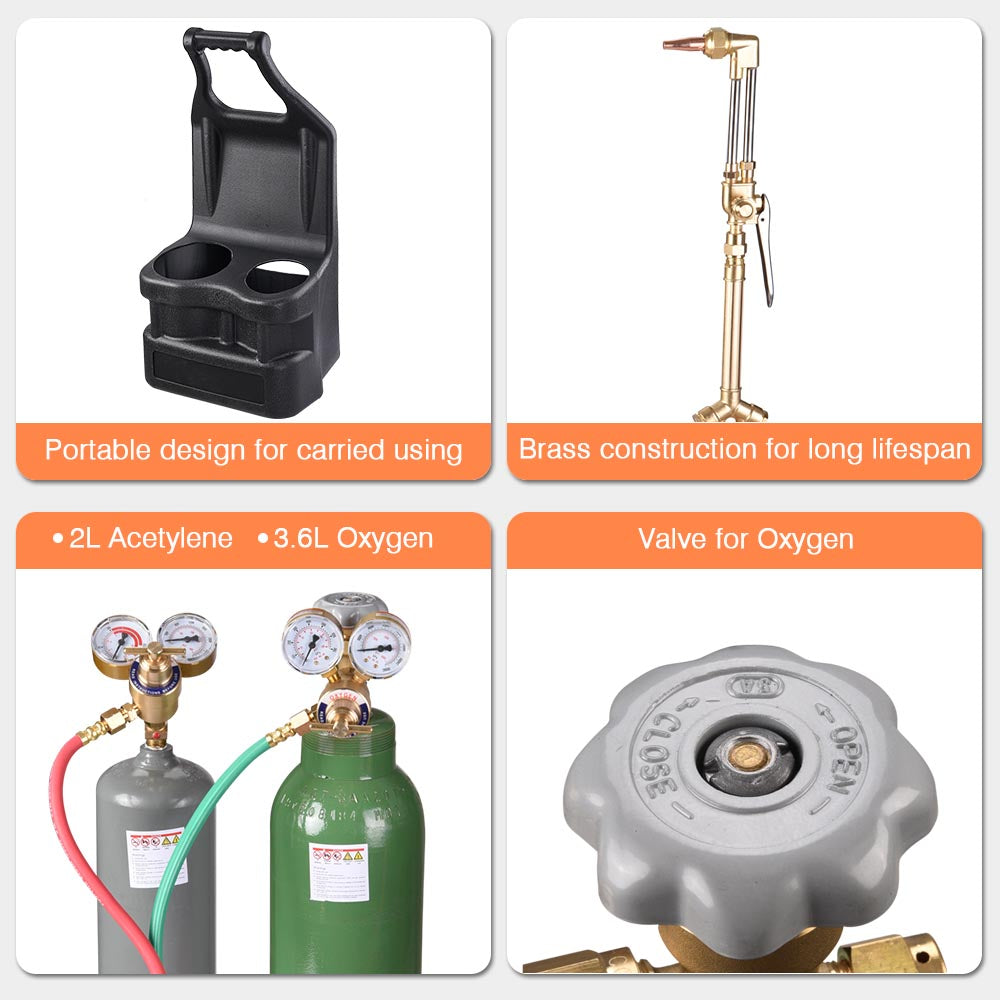

• Welding & Cutting Torch Kit Oxygen Acetylene with Portable Tote and Tanks DOT Guarantee

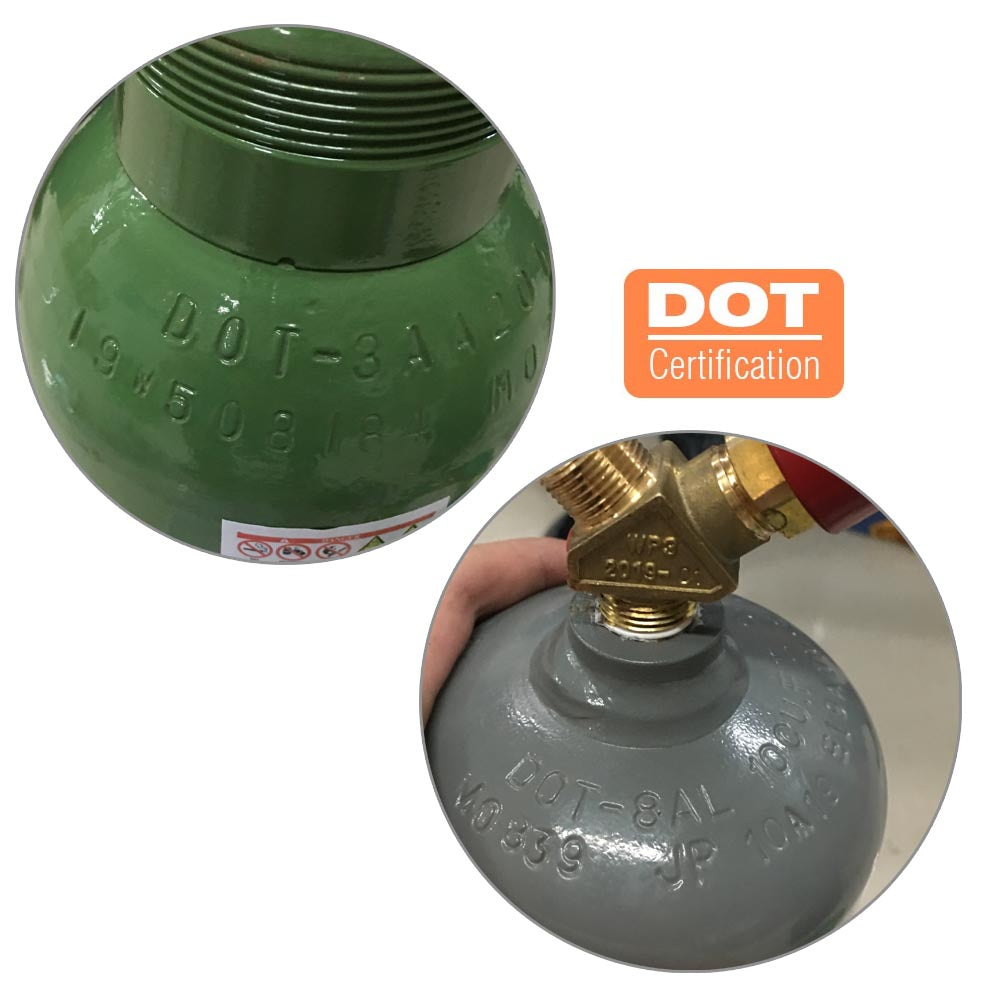

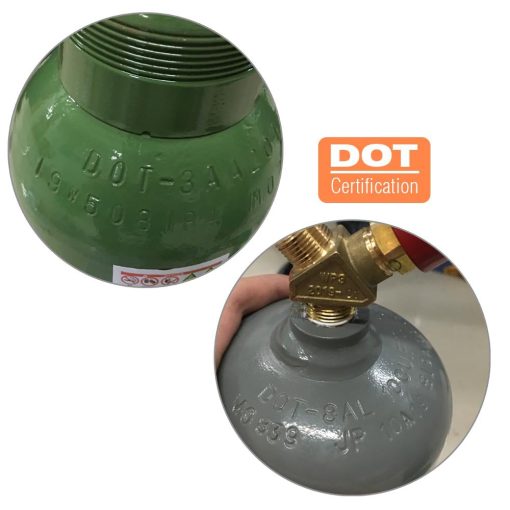

• DOT Guarantee – DOT certification for ensuring high-quality tanks and keeping safety

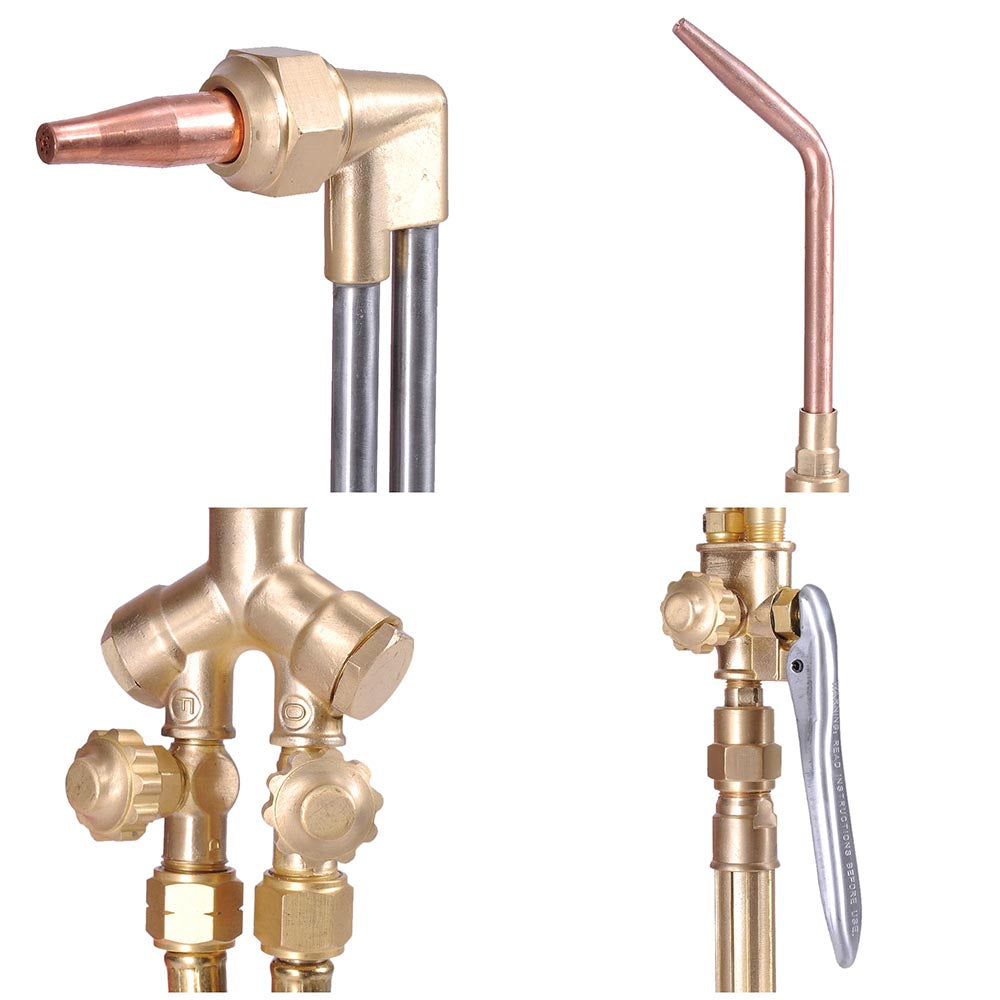

• Durability – Brass torch handle and cutting attachment for long service life
• Extremely Popular for General Maintenance Work. Metal Sculpture. Automotive Repair. Air Conditioning. Refrigeration ETC
• Light to Medium Duty Portable Outfit
• Waterproof Storage Compartment for Small Items
• Rear entry regulators for better balance on the small cylinders

Applications:

• Suitable for welding pipes and tubes. fabricate metal artwork and other metal repair work
• Suitable for iron or steel welding. plus brazing. braze-welding. cutting. bending and forming

Specifications:

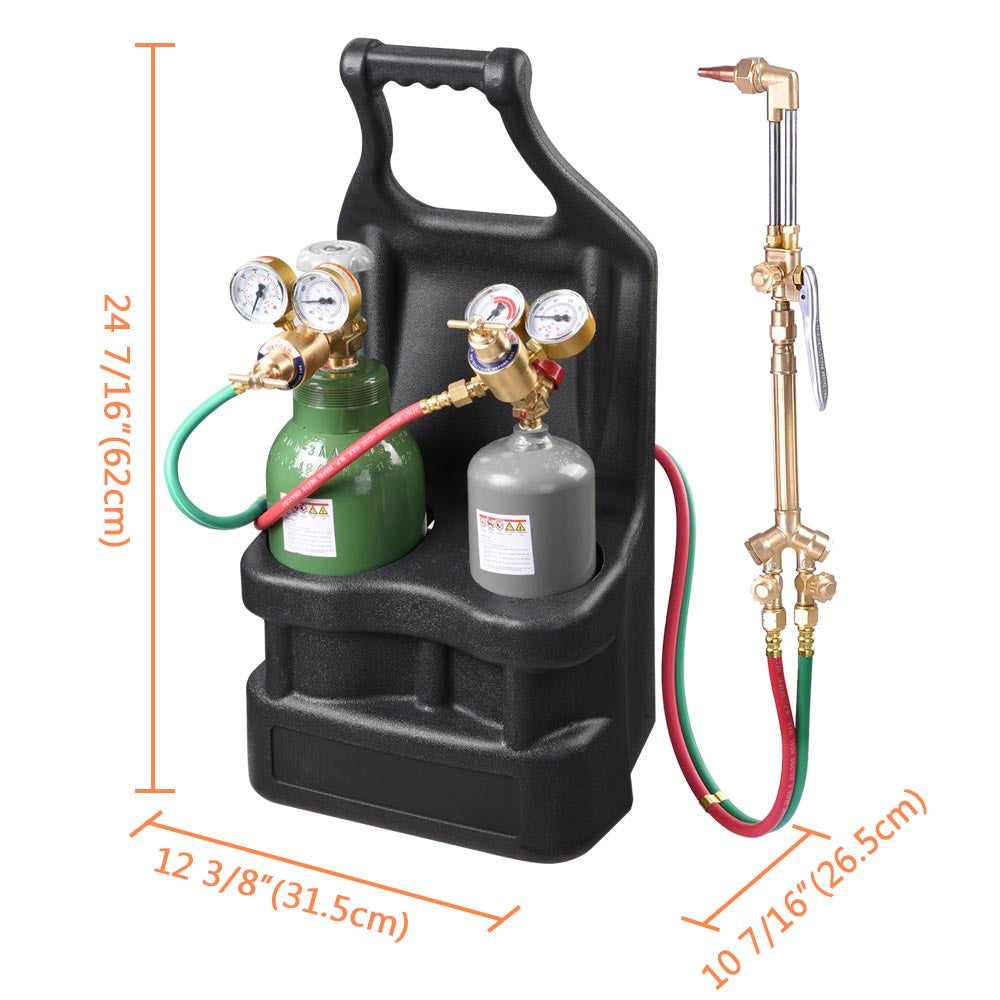

• Overall Dimension(LxWxH): 24 7/16 x 12 3/8 x 10 7/16 (62 x 31.5 x 26.5 cm)
• Oxygen Cylinder Capacity: 3.6 L
• Acetylene Cylinder Capacity: 2 L
• Twin Welding Hose Length: 13 1/12 ft (4 m)
• Material:
  • Cylinders: ST14
  • Torch Handle: Brass
  • Carrying Tote: Polypropylene
  • Certification: DOT
  • Net Weigh: 39.68 Lbs (18 kg)
• Welding gun handle:
  • Oxygen pressure: 0.15 – 0.3 MPa
  • Acetylene pressure: 0.015 – 0.02 MPa
  • Propane pressure: 0.02 – 0.3 MPa
  • Welds up to: 3/16 (5 mm)
• Cutting upper:
  • Oxygen pressure: 0.15 – 0.5 MPa
  • Acetylene pressure: 0.02 – 0.07 Mpa
  • Propane pressure: 0.02 – 0.1 MPa
  • Cuts up to: 1/2 (12 mm)

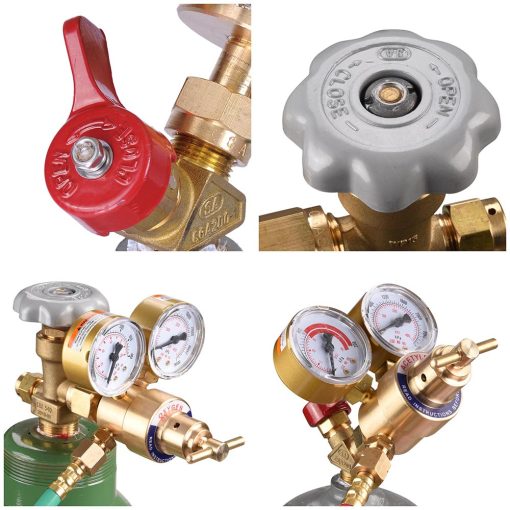

• Gas regulator:
  • Material: Copper

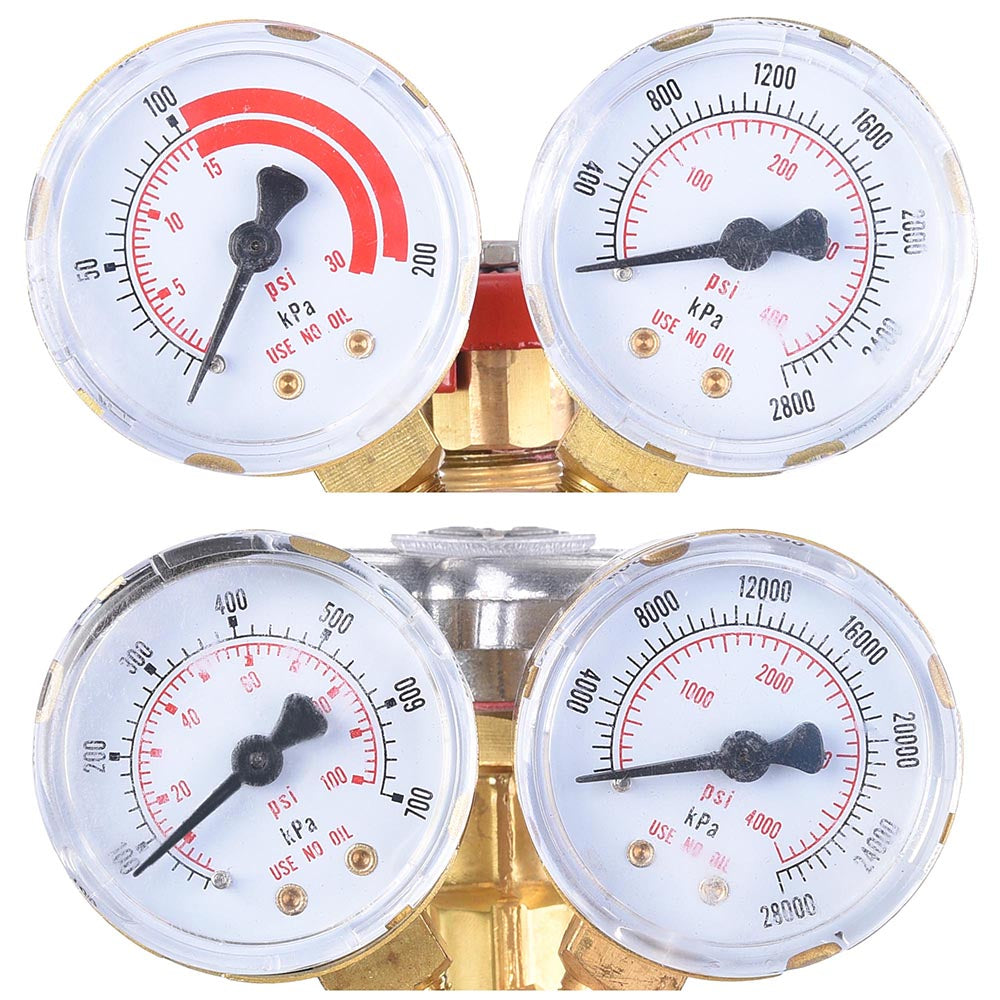

  • 1 1/2 pressure gauge
  • Sintered copper filter
  • Backward Inlet Structure
• Oxygen regulator:
  • Maximum pressure of gas inlet: 23 MPa
  • Maximum pressure of gas outlet: 1 MPa
  • Maximum flow: 20 m/h
• Acetylene regulator:
  • Maximum pressure of gas inlet: 2 MPa
  • Maximum pressure of gas outlet: 0.1 MPa
  • Maximum flow: 5 m/h
• Acetylene cylinder:
  • Capacity: 10 cubic ft. (2 L)
  • Diameter: 4 (102 mm)
  • Height: 16 1/4 (413 mm)
  • Thickness: 1/8 (2.8 mm)
  • Leakage pressure: 3.0 MPa
  • Working pressure: 1.56 MPa
  • Material: ST14
• Oxygen cylinder:
  • Capacity: 20 cubic ft. (3.6 L)
  • Diameter: 5 1/4 (133 mm)
  • Height: 14 9/16 (370 mm)
  • Thickness: 3/16 (4.5 mm)
  • Working pressure: 1.56 MPa
  • Material: ST14
• Welding two-color tube:
  • Inner diameter: 3/16 (5 mm)
  • Outer diameter: 7/16 (11 mm)
  • Working pressure: 200 PSI
  • Maximum pressure: 900 PSI
  • Length: 13.5′ (4 m)
• Welding pole:
  • Size: #2
  • Welding tip: 0-3-101

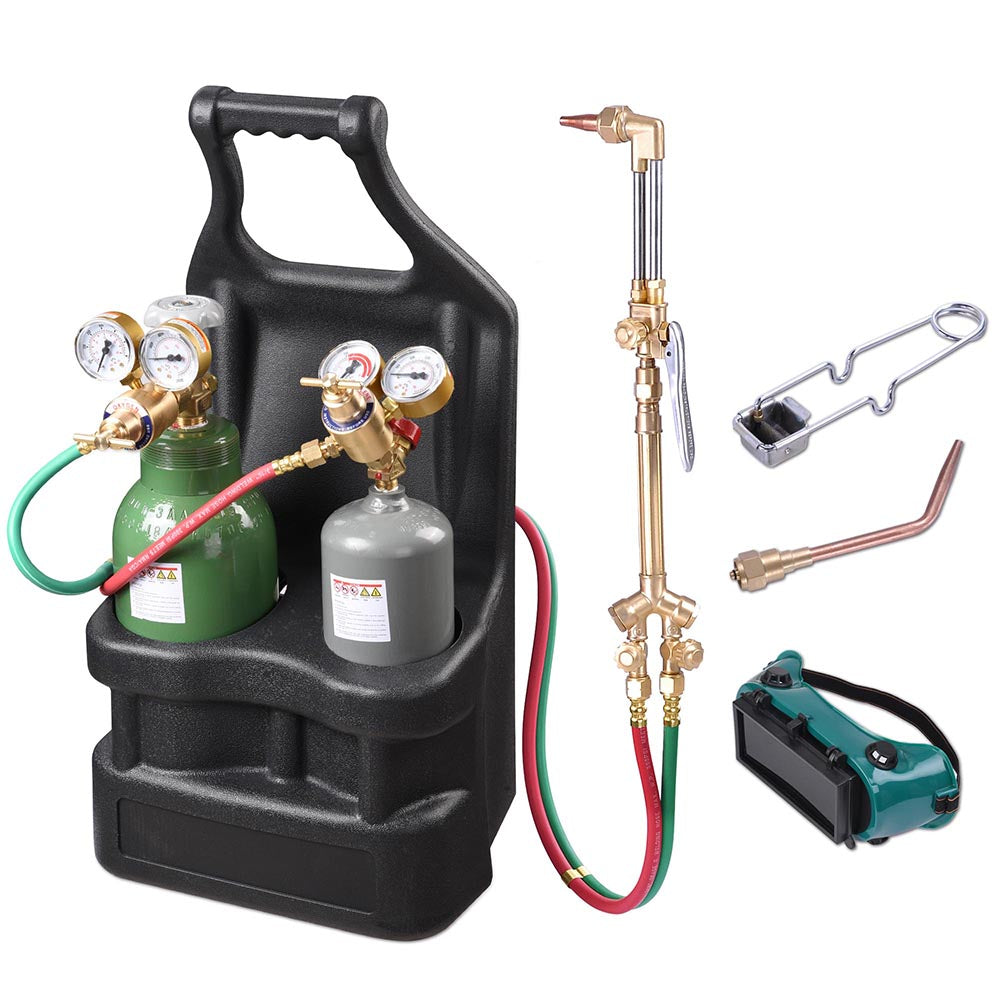

Package Includes:

• 1x 20 cubic ft. Oxygen cylinders CGA540 (empty)
• 1x 10 cubic ft. Acetylene cylinders CGA200 (empty)
• 1x Welding Goggles
• 1x Oxygen Regulator
• 1x Acetylene Regulator
• 1x Welding Tip #2
• 1x Cutting Torch
• 1x Torch Handle
• 1x Twin Welding Hose
• 1x Spark Lighter
• 1x Black Carrying Tote
• 1x Manual

Note: GAS is NOT included.
